(U200)Unit INA226-10A

INA226-10A Current Voltage Power Monitor Unit

SKU : U200
Shop : https://shop.m5stack.com/products/ina226-10a-current-voltage-power-monitor-unit?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10735
Document : https://docs.m5stack.com/en/unit/Unit_INA226-10A
Release Date(probably) : 2025-08-22

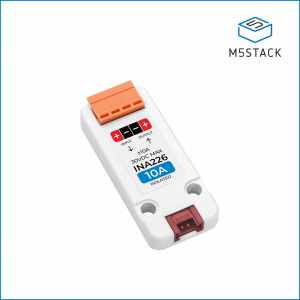

Unit INA226-10A is a fully isolated high-precision current and voltage measurement unit, suitable for scenarios measuring DC 0 ~ 30V voltage and up to 10A current, supporting simultaneous voltage and current measurements. Users can read key parameters such as current, voltage, and power obtained by this unit via the I2C communication interface, supporting multiple main control platforms. It also integrates an isolated power module and I2C signal isolator, achieving complete electrical isolation between the measurement end and the main control end, and features a self-resetting fuse that can automatically blow when the current range is exceeded, effectively ensuring the safety of equipment and personnel, improving system anti-interference ability, and is suitable for a variety of electrical parameter acquisition application scenarios such as power management, battery monitoring, and industrial automation.

Datasheet

Unit INA226-10A Schematics PDF : SCH_Unit_ina226-10A_SCH_Main_V0.3_20250625_2025_08_11_11_28_32.pdf
Unit INA226-10A Model Size PDF : U085_MODEL_SIZE.pdf
INA226 Datasheet : INA226.pdf
