(C149)NanoH2

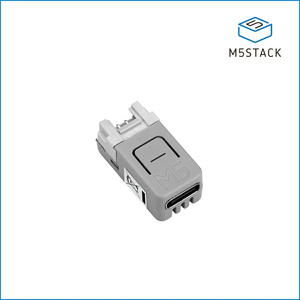

M5Stack NanoH2 Dev Kit (ESP32-H2)

SKU : C149
Shop : https://shop.m5stack.com/products/m5stack-nanoh2-dev-kit-esp32-h2?ref=langship
Shop(Japan) : https://www.switch-science.com/products/10936
Document : https://docs.m5stack.com/en/core/NanoH2
Release Date(probably) : 2025-12-26

NanoH2 is an ultra-compact IoT development board in the M5Stack development kit series. It is powered by the ESP32-H2FH4S as the SoC and features hardware security mechanisms such as secure boot and Flash encryption. The device integrates IEEE 802.15.4 wireless communication and supports Zigbee, Thread, and Matter interoperability protocols based on Thread. The hardware integrates an LED, IR infrared transmitter, RGB, Grove interface, USB Type-C, and a user button. The Grove interface enables flexible expansion with various M5 devices, providing developers with rich hardware expansion capabilities. It is suitable for functional extension needs in lightweight IoT scenarios and can be applied in smart home, industrial control, low-power wireless communication nodes, and the development of various low-power IoT terminals based on IEEE 802.15.2.

Datasheet

NanoH2 Schematics PDF : SCH_M5NanoH2_v0.0.3_2025_08_20_17_17_26.pdf
NanoH2 Model Size PDF : C125-staedddv7p.pdf
ESP32-H2 Datasheet : esp32-h2_datasheet_en.pdf
