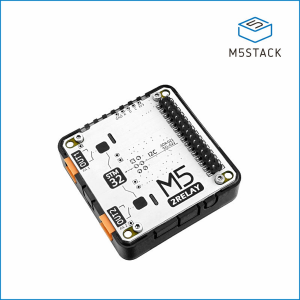

(M124)2-Channel AC Relay Module

2-Channel AC Relay Module 13.2 (STM32F030)

SKU : M124
Shop : https://shop.m5stack.com/products/2-relay-13-2-module?ref=langship
Shop(Japan) : https://www.switch-science.com/products/8499
Document : https://docs.m5stack.com/en/module/2Relay
Release Date(probably) : 2022-09-30

2-Relay 13.2 Module is a 2-Channel AC Relay module, supports 250V/5A per channel. This module conforms to 13.2mm thickness, with onboard STM32F030 for I2C communication.

Datasheet

Module13.2 2Relay Schematics PDF : Sch_Module13.2_2Relay.pdf
932-5VDC-SL-AH RELAY : 932-5VDC-SL-AG%20.pdf
STM32F030F4P6 : STM32F030F4P6.pdf
